EDU System | Passive Modules |
Resistive Load
PEM.EDU.R.A.XXXX.XXX
Description:

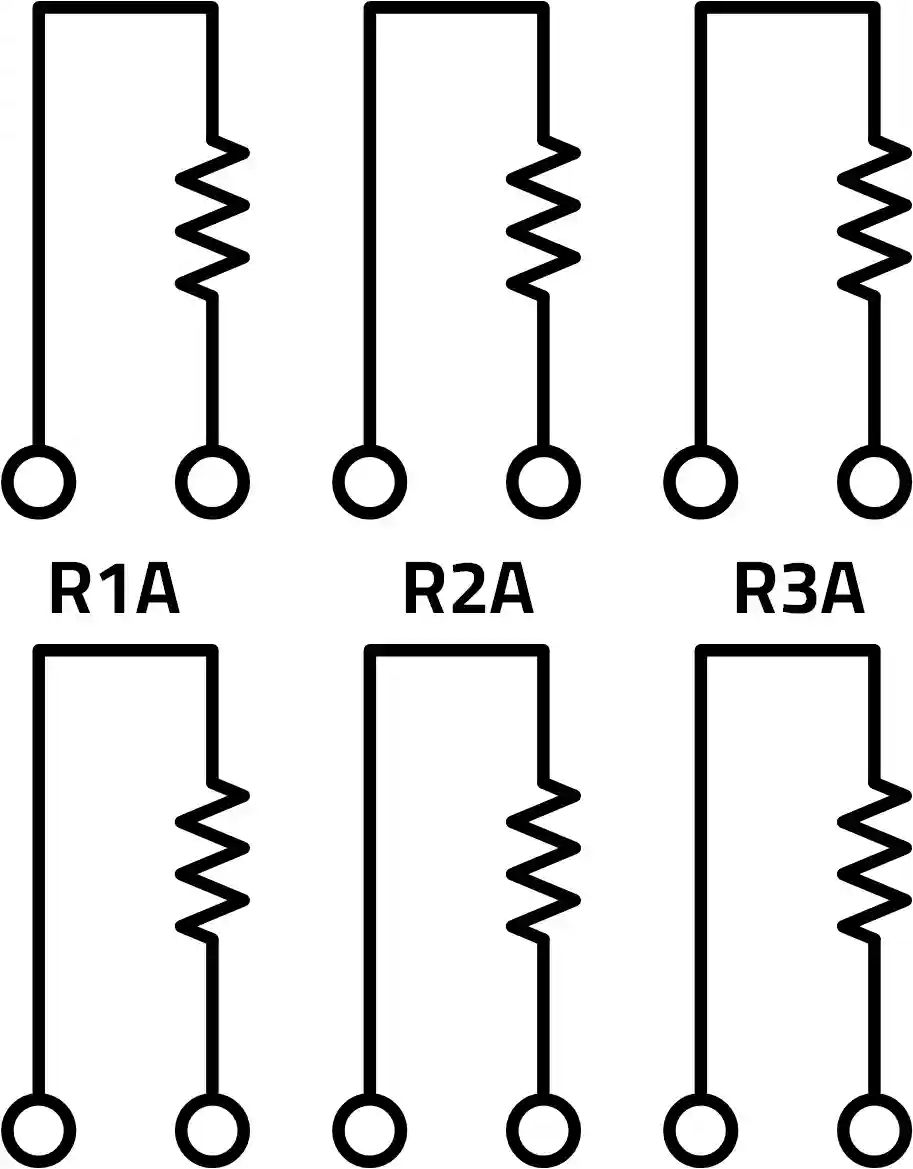

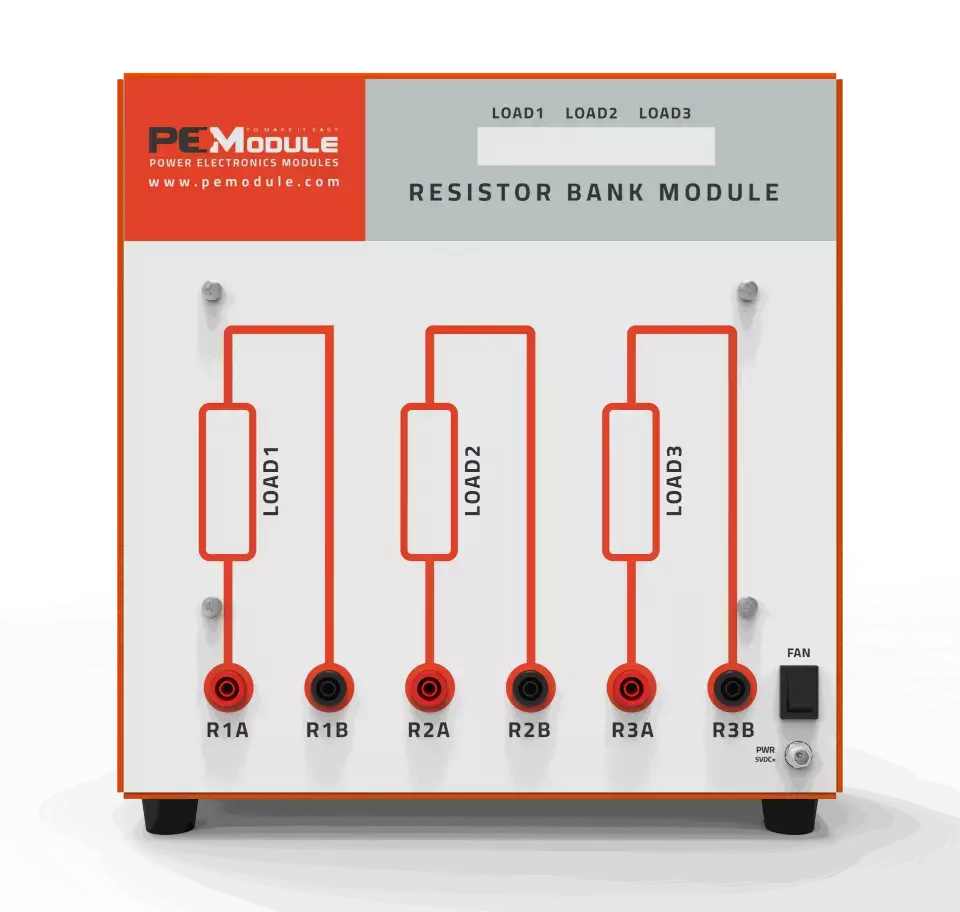

PEModule PLUGY EDU Resistive Load module is comprised of three Power Resistors based on various values of resistors Up to 750 W for different configuration and connection coverage different applications.
Main Features:
- Appropriate for AC three-phase resistive load.
- Appropriate for AC/DC single-phase Resistive Load.
- Up to 750 W total resistive load (250W per each).
- High temperature stability resistor (100 PPM).
- Including heat sink and cooling system.
- Safety shouldered Power Banana for easy connection
- High efficiency forced air cooling system
- Clear transparent back cover for system components demonstration.

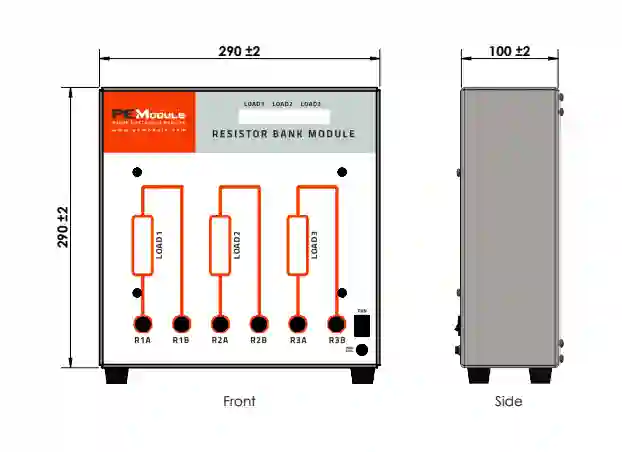

- Heavy duty compact size steel enclosure for high durability and easy to move.
Follow us
EDU Module Specifications
EDU Module Specifications
| Series | V | Imax | Pmax |
|---|---|---|---|
| 50 Ω | 112 V | 2.23 A | 250 W |
| 100 Ω | 158 V | 1.58 A | 250W |
| 200 Ω | 224 V | 1.12 A | 250W |
| 470 Ω | 342 V | 0.72 A | 250W |
| 1 K Ω | 500 V | 0.5 A | 250W |
| 1.8 K Ω | 670 V | 0.37 A | 250W |
* Accept custom resistance value
